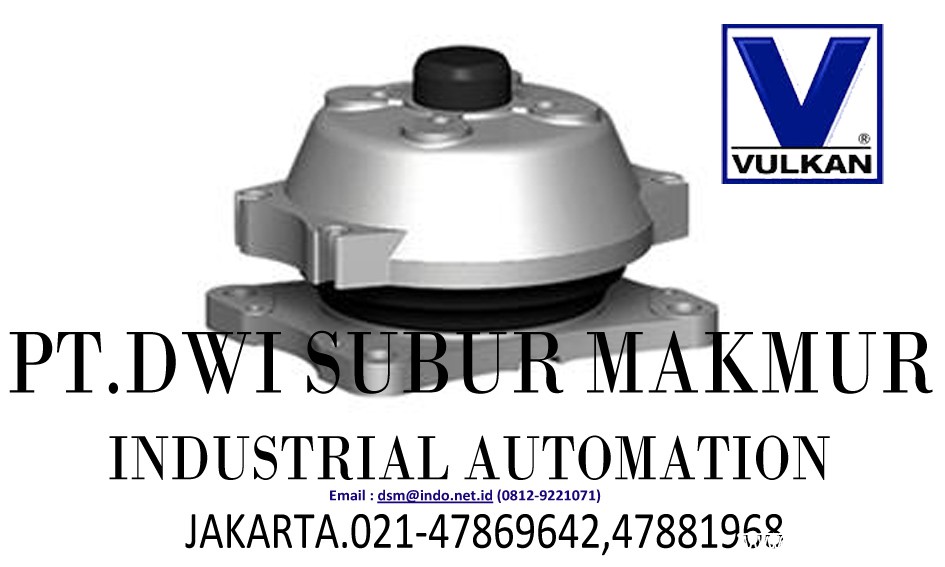

VULKAN T SERIES

Harga :

CALL

Merk :

V U L K A N

Lokasi :

DKI Jakarta - Jakarta Timur

Dilihat :

307 Kali

Update Terakhir :

11-09-2016 14:37

Dapatkan Spesifikasi Harga VULKAN T SERIES Produk Terbaik dari PT. DWISUBURMAKMUR Distributor Supplier Perangkat Industri, seperti Motor Industri, Pneumatic, Hydrolic, Sensor, Controller, PLC, Cluth, Brake, Reducer, Gear Box, dll.

Detail Produk

Nominal load range

4.00 kN - 131.00 kN

Areas of application
Drive motor mounts - Generator frame units – diesel-electric
Drive units – Single and double elastic mounts

The highly elastic mounts of the T Series have been specifically developed to do justice to the most stringent requirements with respect to insulation and comfort. At the same time they offer a high degree of safety with their versatile designs. The load is borne by rubber elements with the help of shear and compression strain. Several rubber compounds are available, as a result of which optimal adjustment of the vibration response of the mounted machine can be ensured. Several versions are available in order to meet the requirements of a given system and all mounts have a built-in centralised limiter that restricts the vertical and radial displacements. The centralised limiter protects the important connections of the system against extreme displacements that occur owing to the ship's movements.

SERIES........ELEMENT
T 12.................22
T12..................24
T12..................26
T35..................22
T35...................24
T35...................26
T50...................22
T50...................24
T50...................26
T60...................22
T60...................24
T60...................26
T75...................22
T75...................24
T75....................26
T90....................22
T90....................24
T90....................26
T140..................22
T140..................24
T230..................22
T230..................24
T230..................26
