10.00 kNm - 160.00 kNm

Applications
Cardan shaft drives, flexibly mounted engines

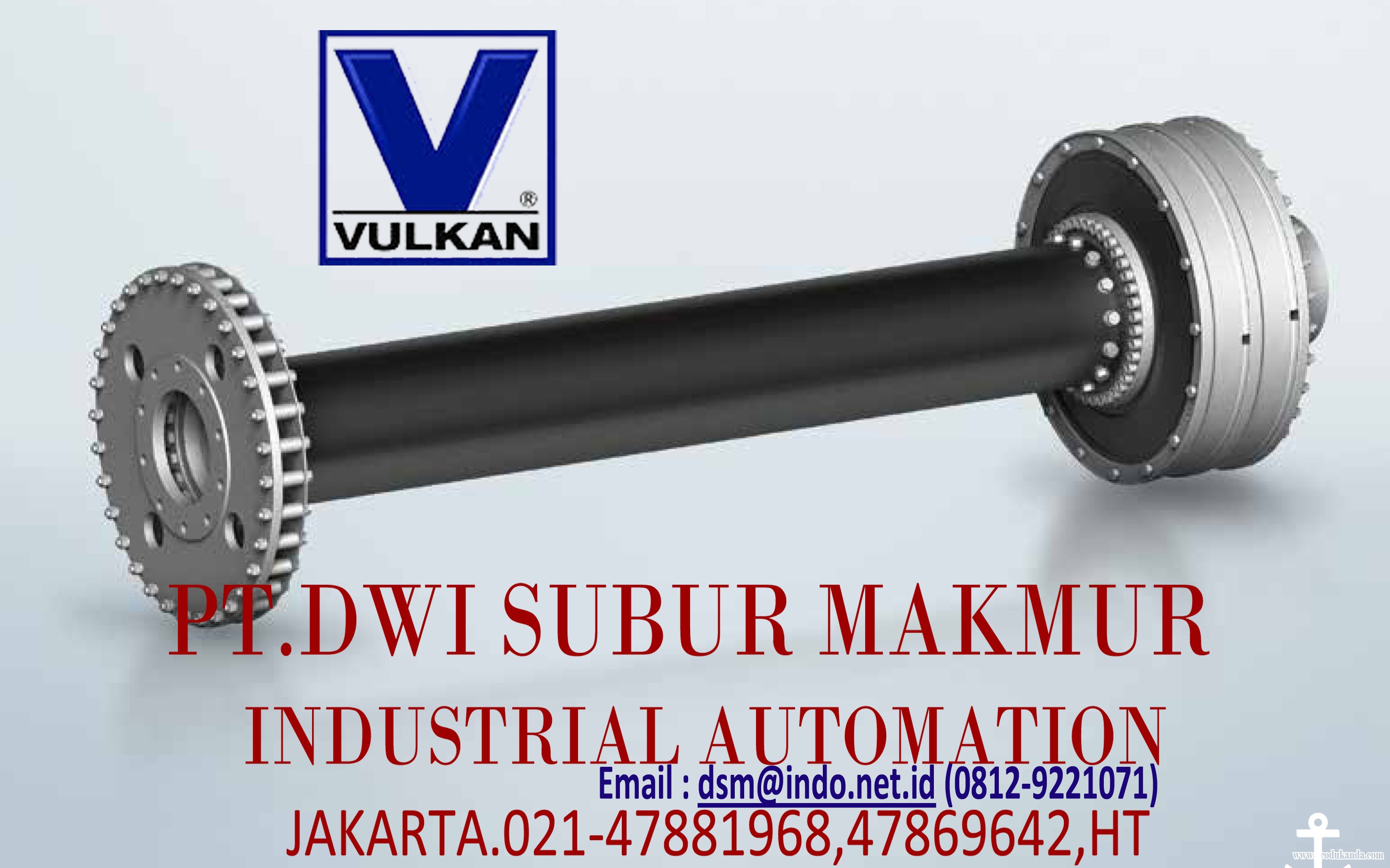

The VULKAN Integrated Shaft Coupling (ISC) combines in a unique way the well proven RATO DS torsional rubber coupling with a double cardanic floating shaft.
The working principle of the ISC is based on the fact that the flexible rubber element of the RATO DS coupling transmits the torque primarily by shear stresses which have a pre-dominant radial/circumferential component.

SIZE ............NORMAL TORQUE
A2115...........10.00
A2116............10.00
A2105............20.00
A2106...........20.00
A2315...........12.50
A2316............12.50
A2305.............25.00
A2306.............25.00
A 2515............16.00
A2516.............16.00
A2505..............31.50
A2506..............31.50
A2715..............20.00
A2716..............20.00
A27D5.............31.50
A27D6.............40.00
A2915..............25.00
A2916..............25.00
A2905..............50.00
A2906..............50.00
A3115..............31.50
A3116..............31.50
A31D5............. 63.00
A31D6..............63.00
A3315...............40.00
A3316...............40.00
A33D5..............80.00
A33D6..............80.00
A3415...............50.00
A3416...............50.00
A34D5...............100.00
A34D6...............100.00
A3915...............80.00
A3916...............80.00
A3905...............160.00
A3906...............160.00
