Features
Braking torque range 7-7800 Nm (higher on request)
Operating-current brake with four pole technology for high power density
With optional cap suitable for IP 67 protection (MWU-B type)
High switching frequency
Short switching times possible with optimised actuation
Diaphragm technology for torque transmission free from backlash and
disengagement free from residual torque
Diaphragm connection for low axial restoring forces
Steel-steel friction combination, hardened for high wear resistance
Function and application

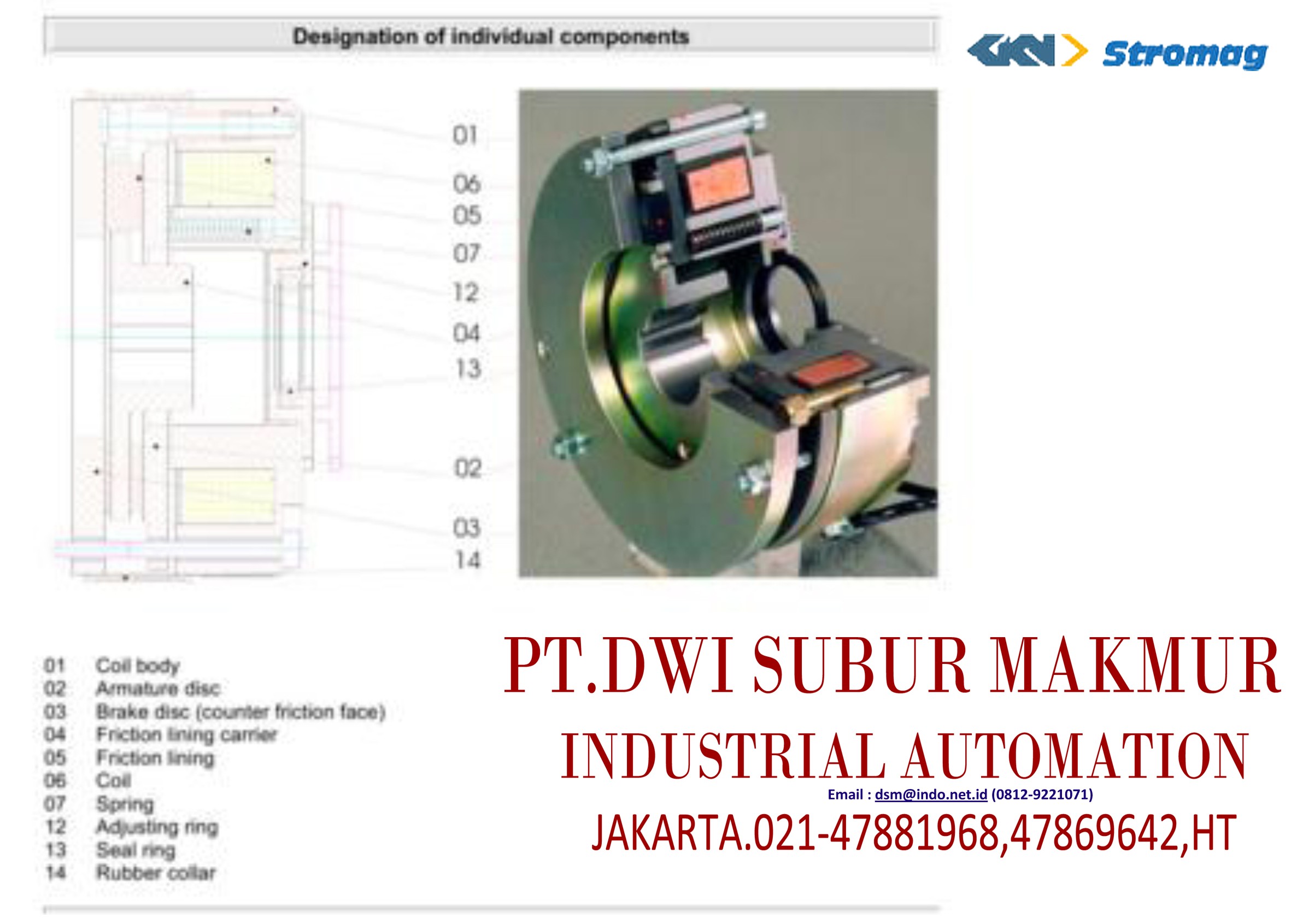

The electromagnetic pole-face friction brakes are active brakes with a high ratio of torque to mounting space ensuring the transmission of torque free from backlash. They are particularly suitable for the active, nontwist, and energy efficient retention and positioning of drives. The MWU-B type with cap for IP 67 protection can be used offshore and under other difficult climatic conditions as in rolling mills, steel mills, and mining.
SICE BZFM :
0.25 , 0.63, 1.6, 2.5 , 4.0, 6.3, 10, 16, 25.
Hubungi :
PT DWI SUBUR MAKMUR
JL. Kayu Jati IV No 25
Jakarta Timur
Telp : 021 47869642, 47881968, 4759101,( 081292210171 )
FAX : 021 4719009
Email ; dsm@indo.net.id
===================
