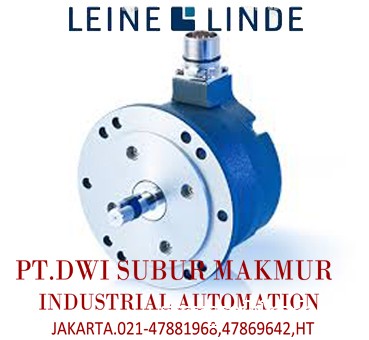

The heavy duty XSI 850 out of the 800 series is extremely robust and made for harsh environments. The integrated diagnostic system (ADS) allows to set up a condition-based maintenance which prevents the machine for unexpected down time.
| Technical data | |
|---|---|
| Shaft type | Stainless steel shaft: 11mm with key nut |
| Flange type | on request |
| Resolution | Incremental: 100, 500, 1000, 1024, 2048, 2500, 3072, 4096, 5000, 8192, 10000 ppr (others on request) |
| Output signal | TTL, RS-422, HCHTL |
| Connection | M20, M23, cable |
| Protection class | IP 66 (acc. to IEC 60529) |
| Temperature range | -40°C...+80°C |
| Special feature | ADS (Advanced Diagnostic System) |
