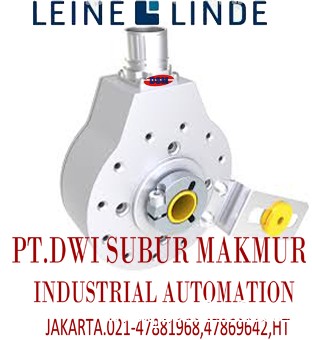

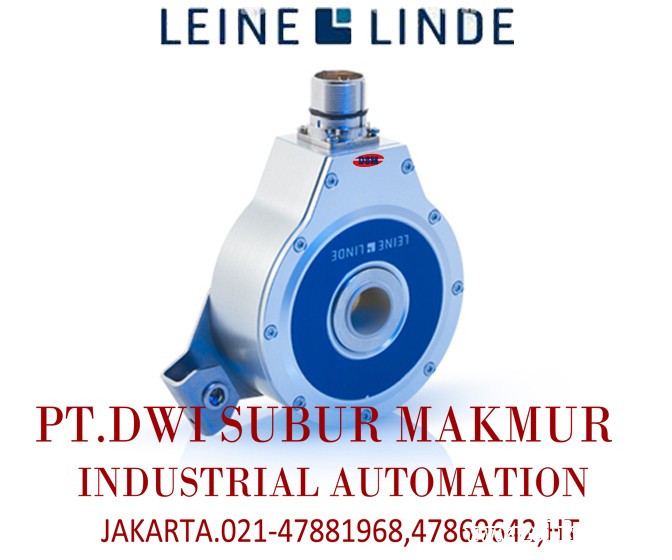

The characteristic of the 700 series incremental encoder is its robustness for tough environment together with the compact design to minimize the overall build length. Still the heavy duty bearings and a well-encapsulated enclosure
| Technical data | |
|---|---|
| Shaft type | Hollow shaft: 5/8 inch, 3/4 inch, 1 inch, 16mm, 20mm, 25mm (through-going) |
| Design | Dual set of heavy duty bearings with stainless stell shaft and insulated peek insert |
| Flange type | 100mm diameter with torque bracket or tether arm |
| Resolution | Incremental: 100, 500, 512, 1024, 2048, 2500, 3072, 4096, 5000, 8192, 10000 ppr |
| Output signal | HTL, HC-HTL, TTL, RS-422, 1Vpp |
| Connection | M23, MS, cable |
| Protection class | IP66 (acc. to IEC 60529) |
| Temperature range | -20...+80°C (extended temperature range on request) |
