- CROSS Ref : DES-TA - CO SERIES 305
- Bar Opens 90°, Handle 175°
- GH-13008 has hardened bushings and removable ground pins

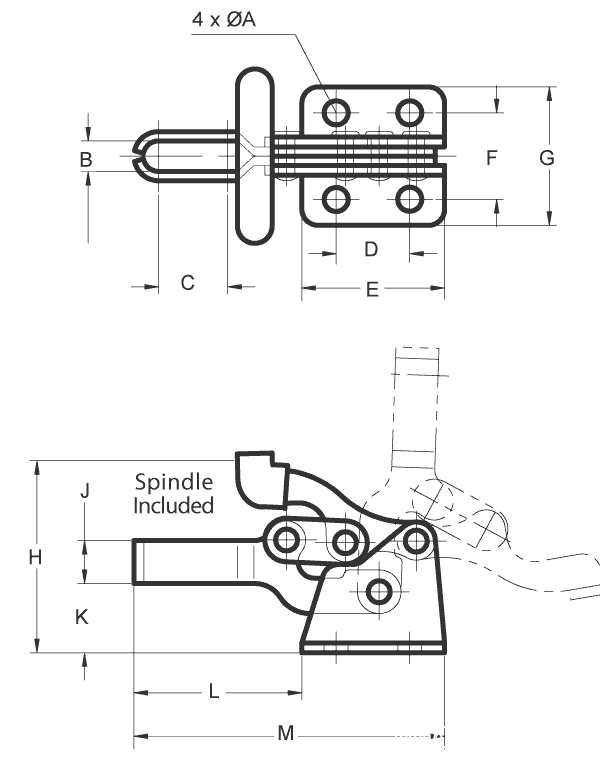

| Model Number | Holding Capacity | Spindle Supplied | A | B | C | D | E | F | G | H | J | K | L | M | Weight | CAD ( 3D / 2D ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GH-13005 | 150 LBS. (68 kg) | GH-FC-10138 | 0.17(4.4) | 0.35(9) | 0.50(12.7) | 0.53(13.5) | 1.03(26.2) | 0.63(15.9) | 1"(25.4) | 1.40(35.2) | 0.31(7.9) | 0.50(12.7) | 1.21(30.8) | 2.24(57) | 0.13 LB.(60 g) | IGS |STP |DWG |
| GH-13005-SS | Stainless SteelModel of GH-13005 | |||||||||||||||
| GH-13007 | 330 LBS. (150 kg) | GH-FC-56212 | 0.28(7) | 0.60(15.2) | 0.77(19.5) | 1.06(27) | 1.73(44) | 1.16(29.4) | 1.81(46) | 2.31(58.7) | 0.50(12.7) | 0.87(22.2) | 1.97(50.1) | 3.69(93.7) | 0.50 LB.(230 g) | IGS |STP |DWG |
| GH-13008 | 705 LBS. (320 kg) | GH-FC-38312 | 0.31(7.9) | 0.75(19) | 1.14(28.9) | 1.54(39) | 2.53(64.3) | 1.50(38.1) | 2.46(62.7) | 3.46(88.1) | 0.75(19) | 1.31(33.3) | 2.66(67.5) | 5.32(135) | 1.38 LBS.(630 g) | IGS |STP |DWG |
GH-13005-HB
