-Cross Ref : DE-STA-CO Series 201
-Holding Capacity : 110 LBS (50 Kg)
-Weight : 0.13 Lb (60g)
-Bar Opens 100° , Handle 56°
-Spindle Supplied : GH-FC-10138
| Model Number | Description | CAD ( 3D / 2D ) |
|---|---|---|

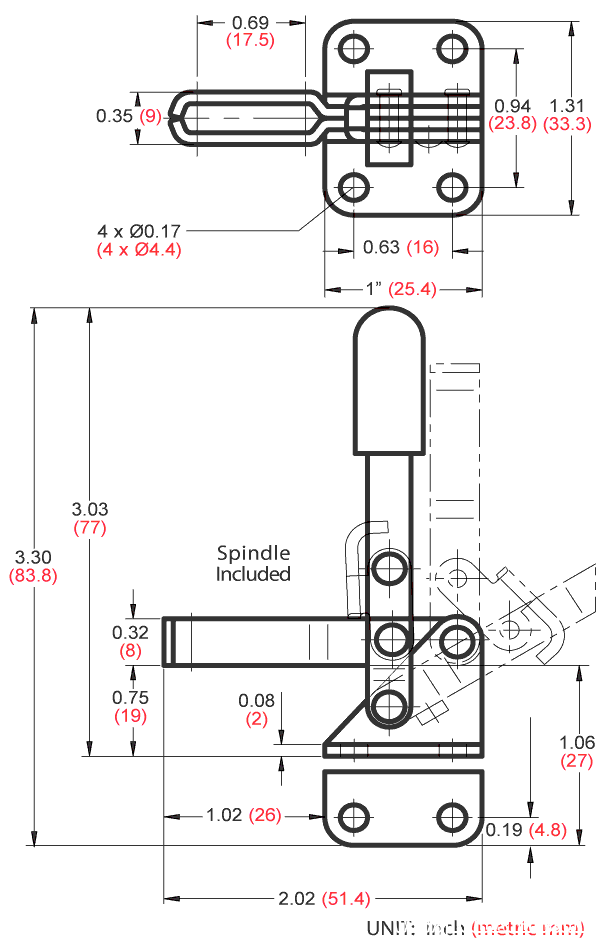

| GH-101-A | U-Bar, Flanged Base, Straight Handle | IGS | DWG |
| GH-101-AI | U-Bar, Straight Base, Straight Handle | IGS | STP | DWG |
| GH-101-AIT | U-Bar, Straight Base, T-Handle | IGS | STP | DWG |
| GH-101-ASS | Stainless Steel Model of GH-101-A | IGS | STP | DWG |
| GH-101-AT | U-Bar, Flanged Base, T-Handle | IGS | STP | DWG |
